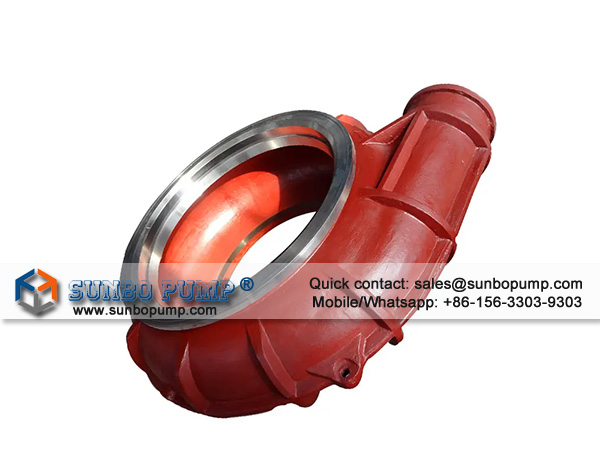

E4110-A05 Slurry Pump Volute Liner is an important wear part of 6/4D-AH & 6/4E-AH slurry pumps. It forms a slurry pump chamber with throat bush and frame plate liner insert where the slurry would flow through them. Slurry volute Liner is a curved funnel increasing in area to the discharge port. It is often used with slurry pump impeller. As the area of the cross-section increases, the volute reduces the speed of the liquids and increases the pressure of the liquids. The main purposes of a volute liner is to help balance the hydraulic pressure on the shaft of the slurry pump.
The volute is an important over-current component of the centrifugal pump [the volute has a great influence on the efficiency of the pump. The centrifugal pump volute, the main function of the volute is to collect the water flow from the impeller and keep the water flow velocity in the volute as a constant by the continuous increase of the cross section of the water to reduce the head loss.
The volute is used on the pump body, and its function is mainly to protect the pump body from material damage, and to stabilize the operation of the equipment and prolong the service life. Usually, the material conveyed by the slurry pump contains solid particles of a certain size and some acid-base ions, so the sheath is subjected to wear and corrosion of the slurry during use.
slurry pump parts are dimensionally interchangeable with original slurry pump parts and other brand slurry pumps. And more, we accept pump parts OEM and ODM business, especially abrasion and corrosion pump parts. sunbo own foundry and compound specialist to increase the wet parts wear life time, and We have been tested by end users plant of the most abrasive and most corrosive arduously applications. and also welcome the opportunity to discuss your applications in more detail. Our experienced technical engineers are always ready to give advice and make suggestions to improve future wear life of your slurry pumps. We are capable enough to help you work out a perfect casting material ingredient for special slurries.
Slurry Pump Volute Liners Code:
| Volute Liner Code | AH Slurry Pump | Volute Liner Materials |
| B1110 | 1.5/1B-AH | High chrome, Natural rubber, Polyurethane |
| B15110 | 2/1.5B-AH | High chrome, Natural rubber, Polyurethane |
| C2110 | 3/2C-AH | High chrome, Natural rubber, Polyurethane |
| D3110 | 4/3C-AH , 4/3D-AH | High chrome, Natural rubber, Polyurethane |
| E4110 | 6/4D-AH , 6/4E-AH | High chrome, Natural rubber, Polyurethane |
| F6110 | 8/6E-AH, 8/6F-AH | High chrome, Natural rubber, Polyurethane |
| G8110 | 10/8F-AH, 10/8T-AH | High chrome, Natural rubber, Polyurethane |
| G10110 | 12/10F-AH, 12/10T-AH | High chrome, Natural rubber |
| G12110 | 14/12F-AH, 14/12T-AH | High chrome, Natural rubber |
| H14110 | 16/14TU-AH | High chrome, Natural rubber |
| Volute Liner Code | HH Slurry Pump | Volute Liner Materials |
| CH1110 | 1.5/1C-HH | High chrome |
| DH2110 | 3/2D-HH | High chrome |
| EH3110 | 4/3E-HH | High chrome |
| FH4110 | 6/4F-HH | High chrome |
| FH4110 | 6-H | High chrome |
| Volute Liner Code | M Slurry Pump | Volute Liner Materials |
| F8110 | 10/8E-M, 10/8F-M,10/8R-M | High chrome, Natural rubber, Polyurethane |
| F10110 | 12/10E-M, 12/10F-M | High chrome, Natural rubber, Polyurethane |
| Volute Liner Code | L Slurry Pump | Volute Liner Materials |
| AL2110 | 20A-L | High chrome, Natural rubber |
| BL5110 | 50B-L | High chrome, Natural rubber |
| CL75110 | 75C-L | High chrome, Natural rubber |
| DL10110 | 100D-L | High chrome, Natural rubber |
| EL15110 | 150E-L | High chrome, Natural rubber |
| SL20110 | 200E-L | High chrome, Natural rubber |
| SL30110 | 300S-L | High chrome, Natural rubber |
| SL35110 | 350S-L | High chrome, Natural rubber |
| TL40110 | 400ST-L | High chrome, Natural rubber |
| TL45110 | 450ST-L | High chrome, Natural rubber |
| UL55110 | 550TU-L | High chrome, Natural rubber |
